Goals

Programming prerequisites, listed in Coding Basics for now

https://docs.wpilib.org/en/stable/docs/software/commandbased/structuring-command-based-project.html

Robot Code structure

When you open a new robot project you'll see a lot of files we'll interact with.

src/main
- deploy
- java
- frc/frc/robot
  - commands
    - ExampleCommand.java
  - subsystems
    - ExampleSubsystem.java
  - Constants.java
  - Main.java
  - Robot.java
  - RobotContainer.java
vendordeps

For typical projects, you'll be spending the most time in RobotContainer, subsystems, and occasionally commands.

For some early practice projects, or special use cases you might also interact with Robot.java, ExampleCommand.java, or ExampleSubsystem.java a bit.

Third Party Libraries

Many helpful utilities we'll use for robot projects are represented using code that's not available by default. WPILib has a small manager to assist with installing these, detailed here:

https://docs.wpilib.org/en/latest/docs/software/vscode-overview/3rd-party-libraries.html#adding-offline-libraries

Third Party Tools

We'll also utilize a number of software tools for special interactions with hardware or software components. Some of these include

Rev Hardware Client , a motor controller management tool
GrappleHook , which manages the LaserCan configuration
NI Driver Station is needed for systems that will want to enable and drive a robot.

Putting Things in the Proper Place

The hardest part of getting started with robots is figuring out where your robot code goes.

Robot.java : A microcausm of the complete robot

Robot.java is a very powerful file, and it's possible to write your entire robot in just this one file! For reasons we'll get into later, we do not want to do this. However, the setup of it does a good job explaining how a robot works. Let's look at the structure of this file for now

java
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
public class Robot extends TimedRobot {
	private Command m_autonomousCommand;
	private final RobotContainer m_robotContainer;
	public Robot() {
		m_robotContainer = new RobotContainer();
	}

	public void robotPeriodic() {}

	public void disabledInit() {}
	public void disabledPeriodic() {}

	public void autonomousInit() {}
	public void autonomousPeriodic() {}

	public void teleopInit() {}
	public void teleopPeriodic() {}

	public void testInit() {}
	public void testPeriodic() {}

	//a few more ignored bits for now
}

From the pairing, we can group these into several different modes

"Robot"
Autonomous
Teleop
Test

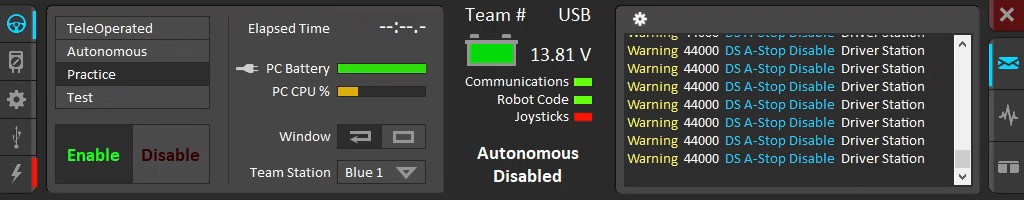

Indeed, if we look at our Driver Station, we see several modes mentioned.

Teleop, Auto, and Test are simply selectable operational modes. However, you might want to utilize each one slightly differently.

"Practice mode" is intended to simulate real matches: This DriverStation mode runs Autonomous mode for 15 seconds, and then Teleop Mode for the remainder of a match time.

"Disabled" mode is automatically selected whenever the robot is not enabled. This includes when the robot boots up, as well as as whenever you hit "disabled" on the driver station.
Disabled mode will also cancel any running Commands .

"Robot mode" isn't an explicit mode: Instead, of "Robot Init", we just use the constructor: It runs when the robot boots up. In most cases, the primary task of this is to set up Robot Container.
robotPeriodic just runs every loop, regardless of what other loop is also running.

We can also see a grouping of

Init
Periodic
Whenever any new "mode" starts, we first run the Init function once, and then we run the periodic. The robot will continue run associated Periodic functions every loop, 50 times per second.

We generally won't add much code in Robot.java, but understanding how it works is a helpful starting point to understanding the robot itself.

RobotContainer.java

As mentioned above, the "Robot Container" is created when you create a new project, and one of the first things that gets executed when running robot code.

This file contains a small number of functions and examples to help you organized.

java
1
2
3
4
5
6
7
8
9
10
11
12
public class RobotContainer(){
	ExampleSubsystem subsystem = new ExampleSubsystem();
	ExampleCommand command = new ExampleCommand();
	CommandXboxJoystick joystick = new CommandXboxJoystick(0);
	RobotContainer(){
		configureBindings();
	}
	public void configureBindings(){
		//Not a special function; Just intended to help organize
	}
	public Command getAutonomousCommand(){/*stuff*/}
}

This file introduces a couple new concepts

Commands, which form the "actions" you want the robot to perform
Subsystems, or the different parts of the robot that could perform actions
Joysticks , which serve as the standard input method.

The use of Commands and Subsystems goes a long way to managing complex robot interactions across many subsystems. However, they're certainly tricky concepts to get right off the bat.

Constants.java

Sometimes, you'll have oddball constants that you need to access in multiple places in your code. Constants.java advertises itself as a place to sort and organize these constants.

Without getting too into the "why", in general you should minimize use of Constants.java; It often leads to several problems as your robot complexity increases.

Instead, keep your constants as close to where they're used as possible, and move them up through the robot hierarchy as necessary. This is known as "scope management" or "encapsulation".

If a value is used once, just use the value directly. This covers a lot of setup values like PID tuning values.
If your value is used repeatedly inside a subsystem, make it a private constant in that subsystem. This is common for conversion factors, min/max values, or paired output values
If a constant is strongly associated with a subsystem, but needs to be referenced elsewhere, make it a public constant in that subsystem.
Lastly, if something is not associated with a subsystem, and used repeatedly across multiple subsystems, Constants.java is the place.

If you find yourself depending on a lot of constants, you might need to consider Refactoring your code a bit to streamline things. Note that Stormbots code generally has almost nothing in here!

ExampleSubsystem.java

The ExampleSubsystem.java file is a preconfigured, blank Subsystem. We'll explore Subsystems in depth later.

By default, this class is created, and the periodic() function it contains will run every code loop. This makes it a great place to put a lot of starter code with minimal setup and fuss.

ExampleCommand.java

This is a standard, blank Command . By itself, this file is not too useful. However, the fact that it exists allows useful joystick interactions to be set up in RobotContainer.java

Understanding The Examples

The code examples provided in early code samples will be built using ExampleSubsystem and ExampleCommand, built into every new robot project. They should work as expected without a deeper understanding of Command based robots while you get your footing, and enabling you to migrate to Command based robots once you get there. If an example doesn't talk about Command based stuff, you probably don't have to worry about it!

Creating new files

While you can just create new files in a "normal" way, it's easy to accidentally miss code details that make things harder for yourself.

Instead, WPILib+VSCode has a built in way to do this. Simply right click the appropriate folder, and find the "Create new class/command" option.

This will present you with a list of common FRC classes. The typical ones you'd use are Command and Subsystem.

Code Flow

For those familiar with coding, you might wonder "Where does code actually start from?". This is a fair question in FRC code, which is a more complicated framework. The code path itself is predictable and a simplified view looks like this

plain text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
- Main Bot Initialization
  - Robot.java::RobotInit
    - RobotContainer
      - Subsystem Constructors
      - Command constructors
  - Enter Disabled mode

- Disabled Mode
  - Initialize
    - Robot.java::DisabledInit()
  - Loop
    - Robot.java::DisabledPeriodic
    - (each subsystem)::periodic()

- Teleop Mode
  - Initialize
    - Robot.java::TeleopInit()
    - (any active commands)::init()
  - Loop
    - Robot.java::TeleopPeriodic()
    - (each subsystem)::periodic()
    - (any active commands)::execute()

This is a lot of complexity if you're new to coding, but don't panic. You can mostly ignore a lot of this complexity, and our examples will help you position things properly until you get your bearings.

The complex part, robot actions that move motors and do things, basically boil down into

plain text
1
2
3
4
5
initialize/prep on boot
disabled
initialize
run
stop

We will quickly capture this with our Commands framework, enabling you to do simple things very quickly and efficiently, like they're self-contained little programs.
